ABB 216VC62A HESG324442R13E HESG324442R112F processor

ABB 216VC62A HESG324442R13E HESG324442R112F processor

Technical data of product parameters

The 24 volt DC Positive/ Negative Logic Input module for the Series 90-30 Programmable 216VC62A HESG324442R13E HESG324442R112F
Logic Controller provides 32 discrete input points. The inputs are arranged in four isolated
groups of eight (A1 – A8, B1 – B8, C1 – C8, and D1 – D8); each group has its own common.
The inputs are positive or negative logic inputs and will operate at levels up to 30V.
Backplane isolation between the field side and logic side is provided by opto-couplers on the
module. Isolation is also provided between the four groups of inputs on the module, however
each group of eight inputs is referenced to the same user common connection. There are no
special fault or alarm diagnostics reported. LED indicators (labeled A1 – A8, B1 – B8, C1 – C8,
D1 – D8) at the top of the module provide the ON/OFF status of each input point. 216VC62A HESG324442R13E HESG324442R112F
This module is configured as a 32-point input type and uses 32 bits of discrete %I input data.
Current into an input point results in a logic 1 in the input status table. Power to operate field
devices can be supplied by the user, or from the isolated +24 VDC supply available at the
module’s I/O connectors. This module can be installed in any I/O slot of a 5 or 10-slot 216VC62A HESG324442R13E HESG324442R112F
baseplate in a Series 90-30 PLC system.
Connections to the input circuits are made from the user’s input devices to two male (pin-type)
24-pin connectors (Fujitsu FCN-365P024-AU) mounted on the front of the module. The
connector mounted on the right of the module (front view) interfaces with groups A and B. The
connector on the left side of the module interfaces with groups C and D.
Wiring from the module’s connectors to field devices is made through a cable having a mating
female connector on one end and stripped and tinned wires on the other end. You can purchase
a pair of pre-wired cables, catalog numbers IC693CBL327 and IC693CBL328 or, if required
for your application, build your own cable. Refer to “Building Cables for 24-Pin Connectors”
in the IC693CBL327/328 data sheet in Appendix C of this manual for more information.

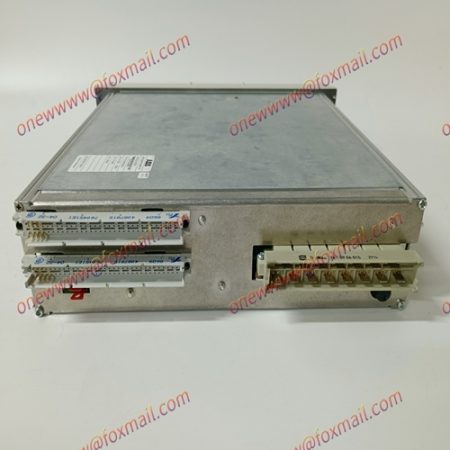

Product picture display
