ABB CSA463AE HIEE400103R0001 monitoring module

ABB CSA463AE HIEE400103R0001 monitoring module

Technical data of product parameters

Any models can be equipped together without empty slots between them.
Non-varnished (Ex)i modules may combined together with non-(Ex)i modules without any restrictions. There are no free slots necessary on the left or on the right.
With varnished (Ex)i modules with PCB covering the right slot has to remain free in combination with non-(Ex)i modules, or has to be equipped with a front plate with partition plate CSA463AE HIEE400103R0001
(M 2214). This is also valid for slot no. 15. The slot left to the (Ex)i module may be equipped
with any other module. Spare slots have to be covered by front plates M 2215The safety-related output modules have three semiconductors connected in series. That
means that more than the required second independent component for safety shutdown is now
integrated in the output module.
In case of a fault of an output module the requirements of SIL 3 are valid without time limit. In CSA463AE HIEE400103R0001
the following this feature is called the integrated safety shutdown.
If a safety-related output module should fail during operation then it will be automatically
switched off by the integrated safety shutdown to get the safe de-energized status.All output modules have the following special features:
– To increase the availability the outputs of the safety-related output modules can be CSA463AE HIEE400103R0001
switched in parallel without external diodes.
Decoupling diodes are already integrated on the module (see the corresponding data
sheets).
– No output voltage is generated if the supply voltage L- is cut at the output module.
– The connection of inductive loads can be done without using protection diodes at the coil.
However, it is recommended to connect a diode directly at the inductive load avoiding
noise voltages.
– The LED signaling the output status is controlled separately The design of the cable plugs enables the two-pole connection of the actuators. Together
with a two-pole supply of the output module an earth fault detection will be simplified by
means of a totalizing current transformer.
The cable plugs are available in two specifications:
• L- in cable plug, one-pole with common L-
• L- in 2-pole type, 2-pole with L- per channel
see also chapter 10.13.6 , “Description of the Order Code for Cable Plugs”, option P2
• No time-limited operation in case of a faulty output module.

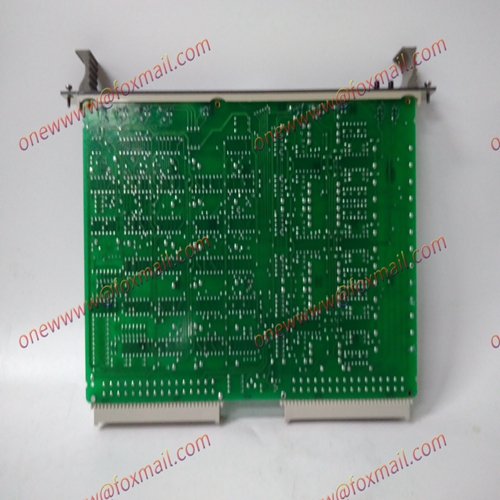

Product picture display
