ABB module REX010 HESG324426R0001 HESG324389

ABB module REX010 HESG324426R0001 HESG324389

Technical data of product parameters

The Emergency Off function is used to switch-off the electrical power supply of the
machine. This is done to prevent users from any risk from electrical energy (for example REX010 HESG324426R0001 HESG324389
electrical impact). Functional aspects for Emergency Off are defined in IEC 60364-5-53.
The Emergency Off function will be triggered by the manual actions of a single person.
The result of a risk evaluation of the machine determines the necessity for an Emergency
Off function.
Emergency Off is done by switching off the supply energy by electro-mechanical switching devices. This results in a category 0 stop. If this stop category is not possible in the
application, then the Emergency Off function must be replaced by other measures (for REX010 HESG324426R0001 HESG324389
example by protection against direct touching)Wiring of a ComCoder as a feedback unit (primary, p.72). For the commutation hall
sensors are used and for the resolution an incremental encoder.
The thermal control in the motor is connected to X1 and evaluated there. With our ComCoder cable all signals are connected correctly. If cable lengths of more than 25m are
planned, please consult our customer service. With separate feedback devices (Encoder
and Hall are two devices) the wiring must be done similar to chapter 7.12.9, but the amplifier’s pinout is identical to the wiring diagram shown belowIf they are programmed as digital outputs, messages from pre-programmed functions stored in the servo amplifier can be output here.
A list of these pre-programmed functions can be found on the “I/O digital” screen page of REX010 HESG324426R0001 HESG324389
our setup software DRIVEGUI.EXE.
If an output is to be freshly assigned to a pre-programmed function, then the parameter
set must be saved in the EEPROM of the servo amplifier and a reset has to be carried out

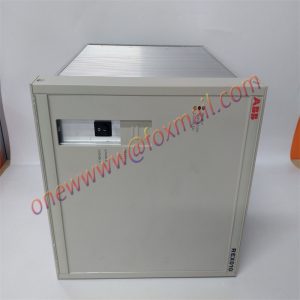

Product picture display
