The IRIG time source needs to be set up to output the same IRIG code as the TMR Processor MPRC086444-005
is set up to receive. Some IRIG sources will output IRIG-B002 as TTL levels. This will not work
with the TMR Processor, so ensure that the IRIG source is set to IRIG-B002 at 485/422 levels.
Some IRIG sources will have IRIG-B123 or B003 outputs. These have the time encoded in
Straight Binary Seconds (SBS) at the end of the usual B122/002 message. These can be used
with the TMR Processor because it ignores the SBS part of the message if there is one.
With the TMR Processor and the IRIG source set correctly, the time should be updated from MPRC086444-005
the IRIG source once the module has booted. If the TMR Processor is not decoding the IRIG
signal correctly for whatever reason, the System Health LED will flash red and the following
will appear in the MP loThe IRIG-B signal is a pulse width modulated signal that transmits 100 pulses per second. For
the IRIG-B002 signal this is directly output at RS422 levels. For the IRIG-B122 signal this
pulse train is amplitude modulated onto a 1 kHz carrier.
The TMR Processor can accept IRIG-B122 inputs with a level between 0.25 V to 10 V PK-PK
for the mark signal, although at 0.25 V it may be very close to the noise margin. MPRC086444-005
The TMR Processor accepts the IRIG-B002 signal at RS422 levels. RS422 is a differential
signal pair. A signal level of about 1.5 V should be measurable across the termination
resistor.
3.1.8. Additional User Serial Ports
Later versions of the TMR Processor are also fitted with three serial communications ports.
These ports may only be accessed via a Processor Interface Adapter Unit (T812X), if this is
fitted to the rear of the chassis. The values shown in the Additional User Serial Ports
Window of the display are the default values. They may be edited to suit user requirements
as necessary.

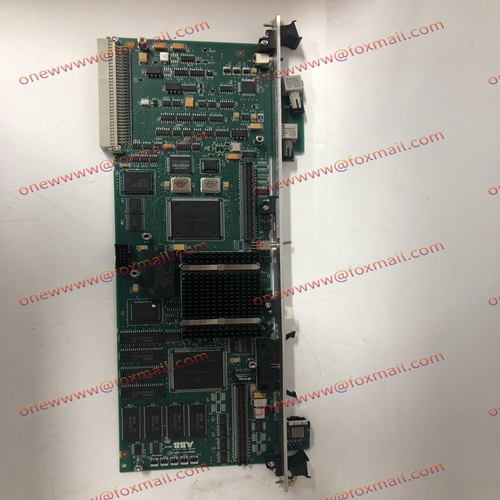

Product picture display
