DANAHER S20360-SRS Cole Morgan Full Series Driver

DANAHER S20360-SRS Cole Morgan Full Series Driver

Technical data of product parameters

The Foxboro DCS System supports time synchronization using either an externally
maintained optional source of Universal Coordinated Time (UTC) from GPS satellites S20360-SRS
or an internal source using proprietary software. FCP280s that receive time updates
via the external time source synchronize their FBMs to 1 ms. For more information on
time synchronization, see Time Synchronization Overview (PSS 41S-1TIME).
Time stamping is used for alarm messages, values sent to the historian, the Foxboro S20360-SRS
DCS Sequence Of Events (SOE) and Transient Data Recorder (TDR), and Transient
Data Analyzer (TDA) features.
SOE data are discrete points that are time stamped at the FBM, optionally to 1 ms,
and sent to the workstation on a change basis. TDR/TDA data are analog or digital
points that are time stamped at the FBM and sent to the workstation every 10 ms.
These features are supported by client software in the workstation. For information on
this new software, see Field Control Processor 280 (FCP280) Integrated Control
Software (PSS 41S-3FCPICS).
Time strobe signals are delivered from custom switches over Ethernet cables. S20360-SRS
However, the method by which these Ethernet cables connect to the FCP280
baseplates differs depending on the baseplate. The standard vertical and horizontal
baseplates’ RH924YF’s first HDLC connector (upper right-hand side of the baseplate)
accepts time strobe signals via time strobe adapter (RH924ZQ), which is discussed in
“Module Fieldbus and Time Strobe Splitters/Terminators” in Standard and Compact
200 Series Subsystem User’s Guide (B0400FA). Receiving the time strobe signals on
the standard baseplate requires the use of the RH924ZQ adapter on the first HDLC
port on the baseplate, and in this configuration, this port cannot be used for any other
purpose. The dual cable baseplate (RH100JX) has two dedicated RJ-45 ports on its
upper right-hand side to accept these Ethernet cables directly without the use of the
RH924ZQ adapter.

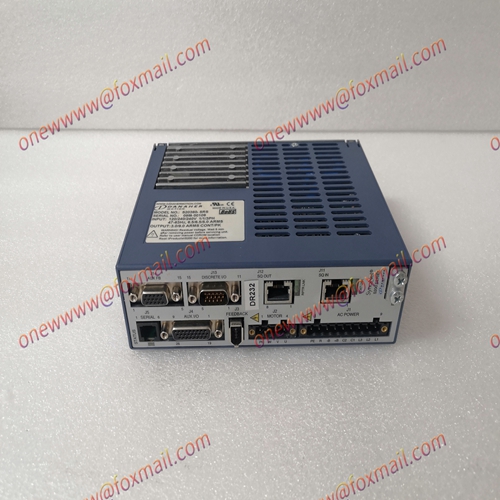

Product picture display
