GE gas turbine card IS200VRTDH1D power board
Technical data of product parameters
VMEbus communication takes place through Control/Status, Configuration and DataIS200VRTDH1D
registers which can be jumper located in either the A16 short I/O space, A24 standard
space or A32 extended address space. A resident bus interrupter is under program
control and can be configured to generate any interrupt request fromIS200VRTDH1D
Digitized input data is accumulated in a dual port data buffer which consists of from
IS200VRTDH1Ddata words, where each data word contains the 16-bit digitized value of a
single analog input channel. Data accumulates in the buffer in selectable blocks of 1, 8,
IS200VRTDH1D channels. Buffer size and block size both are under program control,
and the buffer can be read at any time without affecting the scanning sequence.
Data scaling is adjustable with jumper-controlled voltage ranges. Channel gain is
software programmable and can be fixed at IS200VRTDH1D the gain buffer. A data ready flag can be programmed to occur whenthe buffer is either full or half-full. An interrupt can be generated simultaneously with
the data ready flag, or after a specific number of samples have been acquired.
The analog inputs can be scanned continuously or in triggered data bursts. Bursts
(single scans) can be acquired automatically at intervals up to 687 seconds, or can be
triggered by an external event. Single channel random access is also supported.
Various block size/buffer size combinations are available to add versatility to the
board.
References to programming jumpers are made throughout this section. Jumper
installation requirements are described in Chapter 2 “Configuration and Installation”.

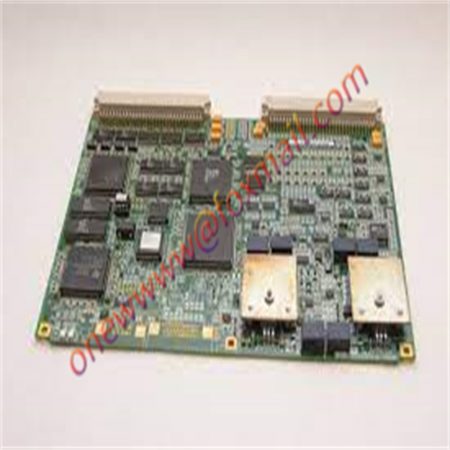

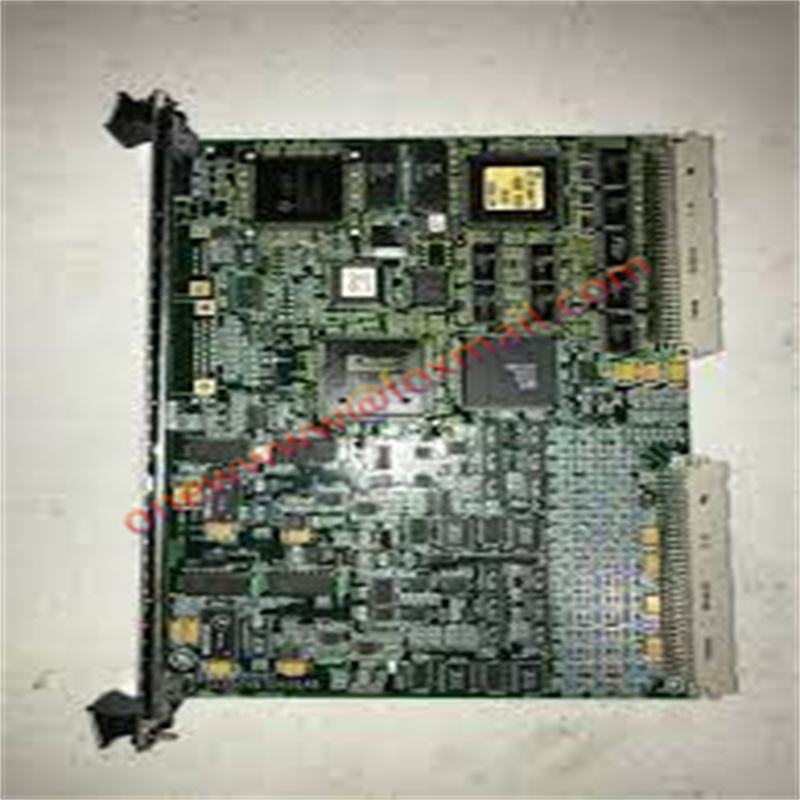

Product picture display
