HONEYWELL CC-TAID01 brand new card

HONEYWELL CC-TAID01 brand new card

Technical data of product parameters

into the PCI FIFO. The PPC Master will draw this command information
from the PCI FIFO when it is ready to process the transaction. During write CC-TAID01
transactions, write data is captured from the PCI bus within the PCI Input
block. This data is fed into the PCI FIFO. The PPC Output block removes
the data from the FIFO and presents it to the PPC60x bus. During read
transactions, read data is captured from the PPC60x bus within the PPC CC-TAID01
Input block. From there, the data is fed into the PCI FIFO. The PCI Output
block removes the data from the FIFO and presents it to the PCI bus.
The MPIC is hosted by the PHB. A custom MPIC Interface is provided to
allow write data and control to be passed to the MPIC and to allow read
data to be passed back to the PHB. The MPIC Interface is controlled
exclusively by the PCI Slave.
The data path function imposes some restrictions on access to the MPIC,
the PCI Registers, and the PPC Registers. The MPIC and the PCI Registers CC-TAID01
are only accessible to PCI originated transactions. The PPC Registers are
only accessible to PPC originated transactions.
PHB has several small blocks that support various PPC functions.
Arbitration is provide by the PPC Arbiter block. Cache line locking (via
PCI Lock) is handled by the PPC Lock block. Finally, a timer function is
implemented in the PPC Timer block.
PHB also provides miscellaneous support for various PCI functions.
Arbitration on the PCI bus is handled by the PCI Arbiter block. Parity
checking and generation is handled within the PCI Parity block.

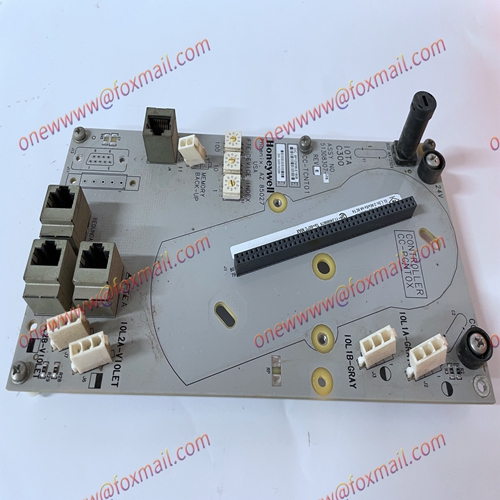

Product picture display
