JGSM-06 industrial control spare parts supply import card module

JGSM-06 industrial control spare parts supply import card module

Technical data of product parameters

The data blocks read from the SOE_DATA area will contain either Time stamp or Variable
information. For each sequence, a Time stamp block with a REASON code of 4 (data event) JGSM-06
will proceed the first Variable block. Subsequent Variable blocks will use the time stamp
from the preceding Time stamp block. Note that it is possible to have a single Time stamp
block followed by any number of Variable blocks. In such a case, all of the variables share
the same time stamp. It is also possible to have a Time stamp block preceding each Variable JGSM-06
block. In such a case, each variable is associated with a unique time stamp. Because a Time
stamp block is present before the first Variable block of a sequence, it is possible for 2
Variable blocks transferred in different sequences to share a time stamp that was derived
from 2 separate (but equal) Time stamp blocks.
There is no guarantee that the time stamps contained in subsequent Time stamp blocks will JGSM-06
be in order.Later versions of the TMR Processor are able to receive InterRange Instrumentation Group
(IRIG) signals. For this to be active, the Processor Interface Adapter Unit (IRIG-B, model
T8121 or T8123) must be fitted to the rear of the Controller Chassis. This contains the IRIG-B
‘dongle’. The Check to Enable box in the InterRange Instrumentation Group (IRIG) area of
the display must be selected. The user may also select which mode (IRIG-B002 or IRIG-B122)
is required and also enable LED monitoring. If LED Monitoring is selected, the User 2 LED on
the Front Panel of the Processor will flash to indicate that a valid IRIG signal is detected JGSM-06
(once per second).
IRIG-B122 is the 1 – kHz amplitude modulated version of the signal.
IRIG-B002 is the RS485/422 version of the signal.
Note that configuring the above system configuration options and fitting/wiring the
appropriate adapter unit is all that is required to ensure that the IRIG signals are assigned to
the system clock. There is no need to add any programming to manipulate the Main
Processor (MP) complex I/O definition boards TTMRP_3, TTMRP_4 and TTMRP_5 to
synchronise the time. However, the IRIG signal does not contain any year information, and
so an initial approximate setting of the real time clock will be necessary to enter the correct
year.

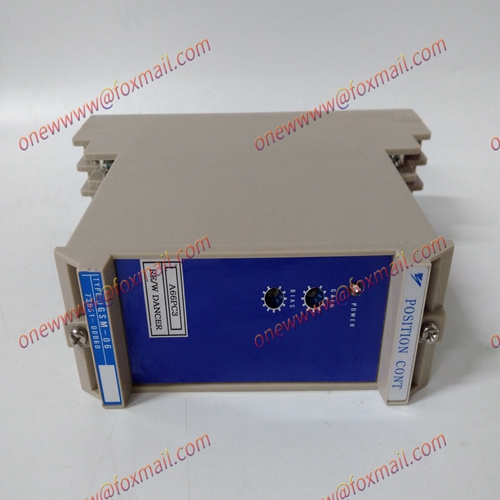

Product picture display
