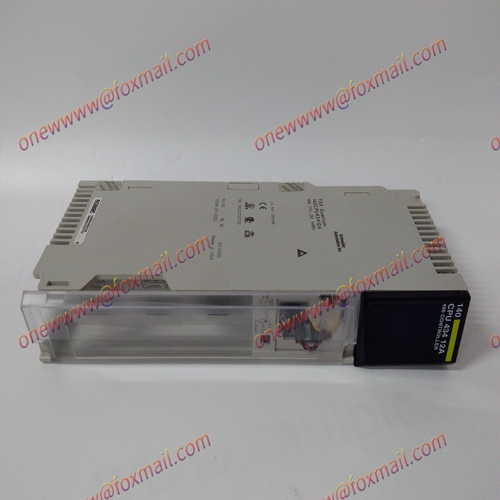

Schneider 140CPU43412A CPU processor

Schneider 140CPU43412A CPU processor

Technical data of product parameters

Before inserting a new I/O module, examine it for damage. 140CPU43412A
• The identification labels on the sides of the I/O module will be hidden
when the module is installed. Therefore before installation write down
the location of the module and the details shown on the label.
Installation
1. Examine the coding pegs on the termination assembly and make sure
that they complement the sockets on the rear of the new I/O module.
2. Place the I/O module on to the dowel pins on the T9300 I/O base unit.
Make sure the slot on the head of the module clamp screw is vertical and
then push the module home until the module connectors are fully mated
with the I/O base unit and termination assembly connectors.
3. The locking screw requires a quarter turn clockwise to lock. Use a broad
(9mm) flat blade screwdriver to lock the clamp screw. The locking screw 140CPU43412A
acts as a power interlock device and must be in the locked position when
power is applied otherwise the module will not be configured.
Install T9310 Expansion
Cables
Use T9310 expansion cables to connect additional groups of T9300 I/O base
units.
The ferrites supplied with the expansion cable are snap on components. Fit the 140CPU43412A
ferrites 50 mm (2 in.) from each end and secure with cable ties either side of
the ferritesIt is important that the system is documented when it is installed and this
documentation is maintained throughout the testing process system.
1. Obtain these items of documentation:
• I/O wiring database with checklist.
• Complete set of drawings.
• Bill of materials.
2. Ensure that each item of documentation is the latest issue.
• Mark each item as ‘Test Copy’.
3. Create a system activity log book and ensure the log book accompanies
the system into test.
• Allocate an entry number for each test and record each test against its
number in the log book.
• If, during functional tests, the system does not behave as expected,
record the problem in the log book. Allocate a new entry and fault
number for each problem.
